50 Piece (MOQ)
| Business Type | Supplier, Trader |
| Accuracy | ± 1 Mm |
| Frequency | 6 GHz,26 GHz,80 GHz |
| Material | PTFE,PVDF,316L,PP,PEEK |
| Click to view more | |
Product Details
Measuring Range
120 M
Process Temperature
-196 ... 450 °C
Process Pressure
-1 ... 160 Bar
Beam Angle
≥ 3°
Threaded Connection
≥ G¾, ≥ ¾ NPT
Flange Connection
≥ DN20, ≥ ¾
Application area

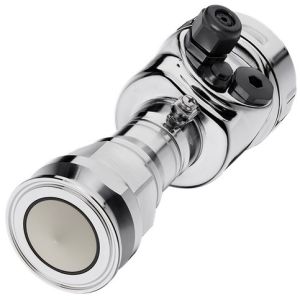

VEGAPULS 6X is a universal sensor for continuous level measurement of liquids and bulk solids under all process conditions. Due to its application-oriented configuration and setup, VEGAPULS 6X offers a reliable and economical solution for all level applications. Due to its variable antenna systems, it ensures maintenance-free operation in all applications.
Your benefit
- Exact measuring results independent of process conditions
- Maintenance-free operation through non-contact measuring principle
- Application-oriented configuration enables a simple device selection
