OEM Pressure Transducers
Leading Manufacturers and Wholesaler of Series 3L Pressure Transducers, Series 4L Pressure Transducers, Series 7L Pressure Transducers, Series 9L Pressure Transducers, Series 9FL Pressure Transducers and Series 10L Pressure Transducers from Nanded.
| Business Type | Supplier, Trader |
| Type | Pressure Transducers |
| Accuracy | ± 0, 5 %FS |
| Pressure Ranges | 0...20 To 0...200 |
| Long Term Stability | ± 0,5 %FS |
| Dimensions | Ø 9,5 Mm X 4,2 Mm |
| Temperature Range | 0...50 °C |
The pressure transducers of the 3L series have a small and compact design, making them ideally suited to OEM applications with limited installation space. The metal diaphragm is welded on front-flush and gap-free, separating off the piezoresistive pressure sensor, which is made of silicon, from the measuring medium. Every pressure transducer is measured over the entire pressure and temperature profile and is supplied with a detailed calibration sheet.
| Business Type | Supplier, Trader |
| Type | Pressure Transducers |
| Accuracy | +/- 0.5 %FS |
| Pressure Ranges | 0-10 To 0-200 Bar |
| Long Term Stability | +/- 0.5 %FS |
| Dimensions | Diameter 11mm X Height 5.2mm |
| Temperature Range | -20 To 85°C |

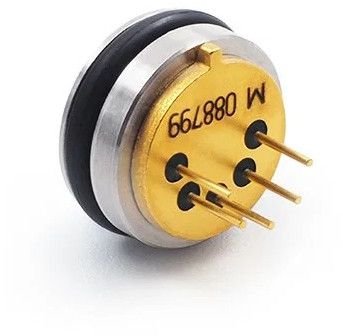

The pressure transducers of the 4L series have a small and compact design, making them ideally suited to OEM applications with limited installation space. The metal diaphragm is welded on front-flush and gap-free, separating off the piezoresistive pressure sensor, which is made of silicon, from the measuring medium. Every pressure transducer is measured over the entire pressure and temperature profile and is supplied with a detailed calibration sheet.
| Business Type | Supplier, Trader |
| Accuracy | ± 0.5 %FS |
| Type | Pressure Transducers |
| Pressure Ranges | 0-5 To 0-200 Bar |
| Long Term Stability | ± 0.25 %FS |
| Dimensions | ⌀ 15 Mm X 5 Mm |
| Temperature Range | -20 To 100°C |
The pressure transducers of the 7L series have a compact, robust housing made of stainless steel, giving them excellent long-term stability for a range of OEM applications. The metal diaphragm is welded on front-flush and gap-free, separating off the piezoresistive pressure sensor, which is made of silicon, from the measuring medium. Every pressure transducer is measured over the entire pressure and temperature profile and is supplied with a detailed calibration sheet.
| Business Type | Manufacturer, Exporter, Supplier |
| Accuracy | ± 0.25 %FS |
| Type | Pressure Transducers |
| Pressure Ranges | 0...0.2 To 0...200 Bar |
| Long Term Stability | ± 0.2 %FS |
| Dimensions | ⌀ 19 Mm X 5 Mm |
| Temperature Range | -40...125 °C |

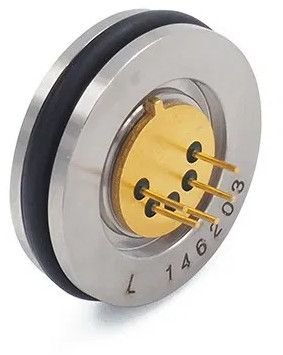

The pressure transducers of the 9L series have a compact, robust housing made of stainless steel, giving them outstanding long-term stability for a range of OEM applications. The metal diaphragm is welded on front-flush and gap-free, separating off the piezoresistive pressure sensor, which is made of silicon, from the measuring medium. Every pressure transducer is measured over the entire pressure and temperature profile and is supplied with a detailed calibration sheet.
| Business Type | Manufacturer, Exporter, Supplier |
| Accuracy | ± 0.25 %FS |
| Type | Pressure Transducers |
| Pressure Ranges | 0...0.2 To 0...200 Bar |
| Long Term Stability | ± 0.2 %FS |
| Dimensions | ⌀ 17 Mm X 5.5 Mm |
| Temperature Range | -40...125 °C |

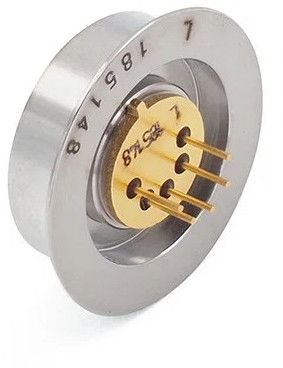

The pressure transducers of the 9FL series have a compact, robust housing made of stainless steel, giving them outstanding long-term stability for a range of OEM applications. The metal diaphragm is welded on front-flush and gap-free, separating off the piezoresistive pressure sensor, which is made of silicon, from the measuring medium. Every pressure transducer is measured over the entire pressure and temperature profile and is supplied with a detailed calibration sheet.
| Business Type | Supplier, Trader |
| Type | Pressure Transducers |
| Material | Steel 1.4435,Hastelloy C-276,Inconel 718 |
| Accuracy | ± 0.25 %FS |
| Pressure Ranges | 0.1 To 200 Bar |
| Long Term Stability | ± 0.15 %FS |
| Dimensions | ⌀ 19 Mm X 15 Mm |
| Temperature Range | -40 To 125 °C |

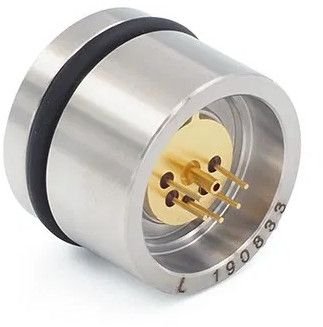

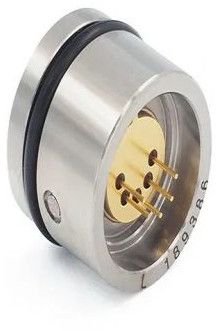

The pressure transducers of the 10L series have a robust housing made of stainless steel, giving them optimum long-term stability for a range of OEM applications. The metal diaphragm is welded on front-flush and gap-free, separating off the piezoresistive pressure sensor, which is made of silicon, from the measuring medium. Every pressure transducer is measured over the entire pressure and temperature profile and is supplied with a detailed calibration sheet.
