Differential Pressure Transmitters
Leading Manufacturers and Wholesaler of and Series PD-23X Pressure Transmitters from Nanded.
| Business Type | Supplier, Trader |
| Accuracy | +/- 0.1 %FS |
| Pressure Ranges | 0...0.16 To 0...25 Bar |
| Total Error Band | +/- 0.25 %FS @ -10...80 °C |
| Line Pressure | 200 Bar / 600 Bar |
| Interfaces | RS485, 4...20 MA, 0...10 V |
| Special Characteristics | Classic 'wet/wet' |

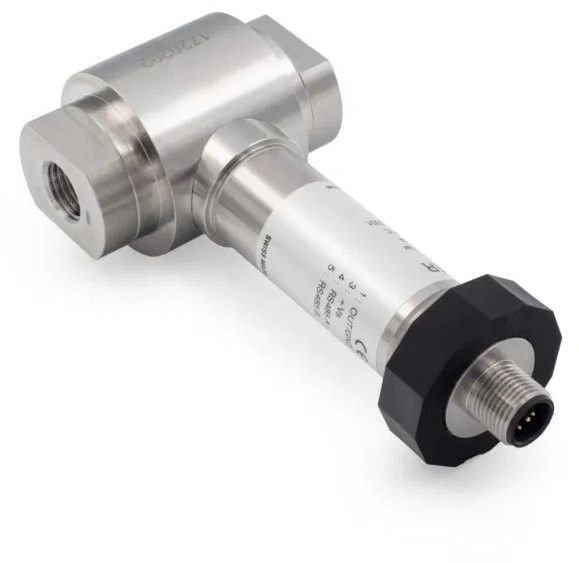

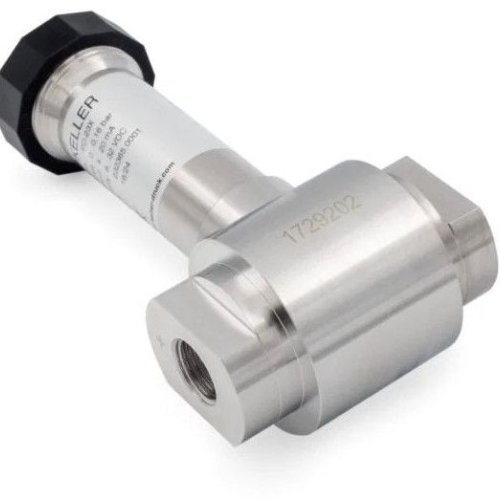

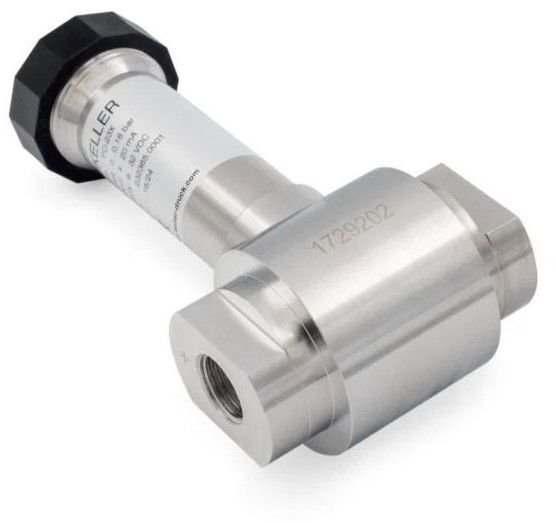

The differential pressure transmitters of the PD-23X series are suitable for 'wet/wet' applications. They have a single silicon diaphragm in their interior, which is pressurised from both sides and measures the pressure difference directly. This design enables them to measure small pressure differences even at an extremely high line pressure. The transmitters use digital compensation with a mathematical model to achieve high accuracy of 0,1 %FS.
