High Temperature Pressure Transmitters
Leading Manufacturers and Wholesaler of and Series M5HB Pressure Transmitters from Nanded.
| Business Type | Supplier, Trader |
| Type | Pressure Transmitters |
| Accuracy | ± 0.1 %FS |
| Pressure Ranges | 0 To 30 Bar |
| Total Error Band | ± 0.5 %FS @ -20 To 125°C |
| Interfaces | 0 To 10 V |
| Temperature Range | -50 To 180°C |

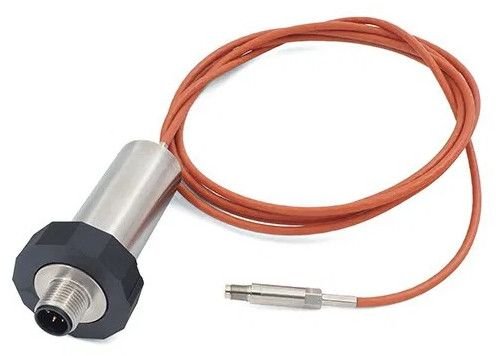

The ultra-fast M5HB pressure transmitter can process pressure changes with a bandwidth of 50 kHz. This is achieved by means of the continuous analog signal that is adjusted by a digital circuit in real time and is amplified to a standardised 0...10V signal. The miniature sensor head with a fine M5 thread can withstand temperatures of up to 180 °C, is overload-proof up to a magnitude of five times the measuring range, and is also resistant to vibrations.
