50 Piece (MOQ)
| Business Type | Manufacturer, Exporter, Supplier |
| Accuracy | ± 0.25 %FS |
| Type | Pressure Transducers |
| Pressure Ranges | 0...0.2 To 0...200 Bar |
| Click to view more | |
Product Details
Long Term Stability
± 0.2 %FS
Dimensions
⌀ 17 Mm X 5.5 Mm
Temperature Range
-40...125 °C

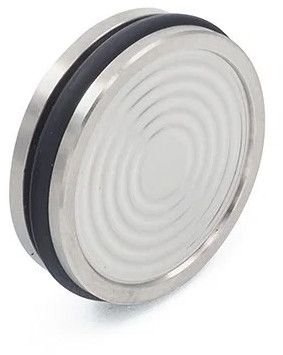

The pressure transducers of the 9FL series have a compact, robust housing made of stainless steel, giving them outstanding long-term stability for a range of OEM applications. The metal diaphragm is welded on front-flush and gap-free, separating off the piezoresistive pressure sensor, which is made of silicon, from the measuring medium. Every pressure transducer is measured over the entire pressure and temperature profile and is supplied with a detailed calibration sheet.
Looking for "Series 9FL Pressure Transducers" ?
